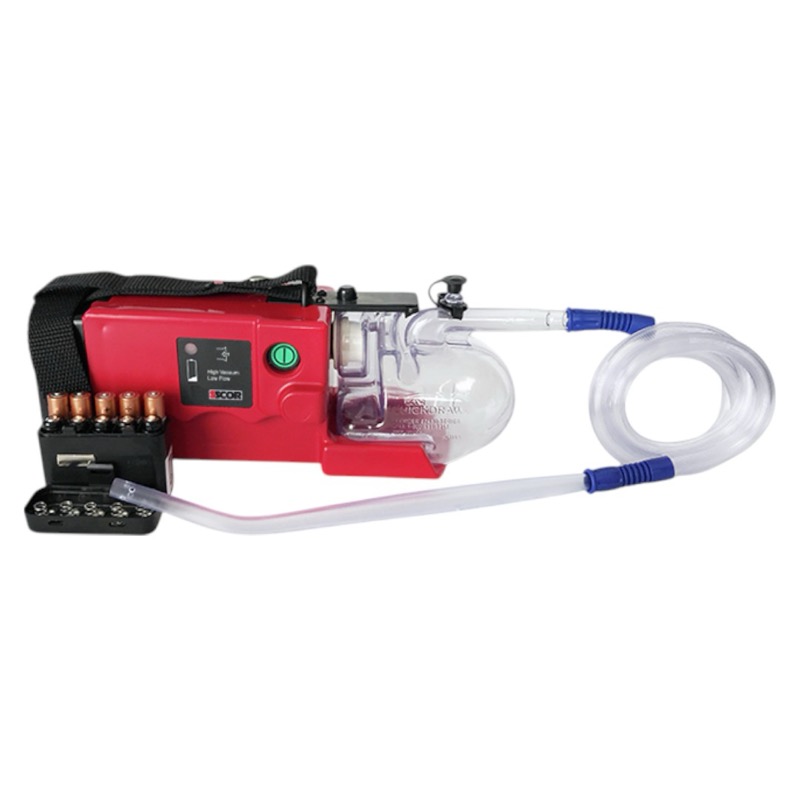

Suction Unit, SSCOR Quickdraw with Alkaline Battery
$753.48
Buy NowPowerful suction designed to fit in your ”first in kit”
FEATURES:
• Lightweight, portable suction device
• Fits in airway or first in bag
• Powered by Alkaline Batteries that do not require a charger
• Use off-the-shelf batteries to power the Quickdraw
• UCLA Center For Pre-hospital Care Suction Study detailing the suction efficiency of the Quickdraw
• Vacuum setting >500mmHg or approximately 80 – 100mmhg
• Clearly labeled battery condition indicator
• 1 year warranty
• CE Marked
• IPX4 rating for protection against ingress of fluids
• Use as a handheld or traditional suction device with tubing, tips and catheters
Description
Powerful suction designed to fit in your ”first in kit”
The SSCOR Quickdraw fits in an airway bag or first in kit so it is easily carried to the patient’s side. It is not necessary to charge it in the bag. It is powered by readily available AAA alkaline batteries or a SSCOR alkaline battery pack for extended run time. It is as efficient as a large aspirator and weighs only 2.6 pounds.
See the Specification Page for run times, vacuum levels and dimensions.
The SSCOR Quickdraw can function as an extremely efficient handheld suction or as a small, yet powerful and effective traditional suction pump based on the canister option that you choose.
Features & Specifications
FEATURES:
• Lightweight, portable suction device
• Fits in airway or first in bag
• Powered by Alkaline Batteries that do not require a charger
• Use off-the-shelf batteries to power the Quickdraw
• UCLA Center For Pre-hospital Care Suction Study detailing the suction efficiency of the Quickdraw
• Vacuum setting >500mmHg or approximately 80 – 100mmhg
• Clearly labeled battery condition indicator
• 1 year warranty
• CE Marked
• IPX4 rating for protection against ingress of fluids
• Use as a handheld or traditional suction device with tubing, tips and catheters
SPECIFICATIONS:
Performance: Maximum negative pressure >500mmHg;
Low negative pressure setting approximately 80 – 100mmHg
Dimensions: 10.5” L x 4.5” H x 4.35” W
27cm L x 11cm H x 11cm W
Weight: 2.6 lbs or 1.18 kg
Battery: Alkaline Battery Pack
180 minutes run time at full capacity
Alkaline Battery Holder (10x’AAA’)
60-100 minutes run time with fresh ‘AAA’ alkaline batteries
Collection Canister: 300 cc/ml capacity: 99.98% bacterial effective filter
STANDARD ITEMS INCLUDED WITH PRODUCT:
Alkaline Battery Pack, one ‘AAA’ battery holder, disposable – one time use canister with 1m patient tube, Hi-D® suction tip and Quickstart Guide.
CONFORMS TO:
ETL listed, conforms to ISO 10079-1 UL 60601-1, IEC 60601-1, EN 60601-1-2, CSA C22.2, No. 601.1 – M90, IPX4 per IEC 60529.
REFERENCE / MODEL NUMBER:
2403
