CPAP + Ventilation, 20012 pNeuton Model S,

Description

Kit includes:
• (1) pNeuton Model S
• (1) DISS high pressure oxygen hose, 8 foot (2.4m), green (ISO color hose available)
• (1) Model S Travel Bag
• (1) Box of 58011 patient circuits – 6 foot (1.8m), large adult mask / head strap, single patient use, qty 10

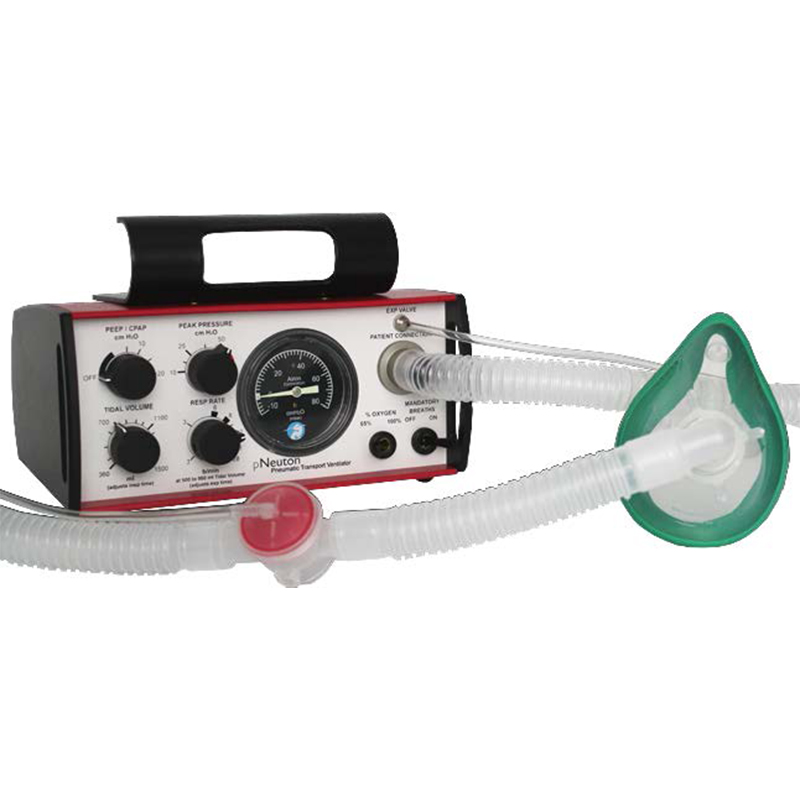

pNeuton model S Ventilator with CPAP for EMS Ground and Air Transport

pNeuton model S ventilator provides mask CPAP plus volume or pressure ventilation for pediatric to adult patients for pre-hospital and hospital environments; with simple-to-use controls – Tidal Volume, Respiratory Rate and Pressure Limit.
For early intervention, the built-in CPAP (Continuous Positive Airway Pressure) system allows you to start with face mask CPAP and if the patient needs it, seamlessly provide ventilation without interruption. Fully pneumatic, the pNeuton S does not use batteries or electrical power to provide ventilation with readiness for operation.
Meeting the Needs for the Most Challenging Patients in Respiratory Distress
The built-in high output demand flow CPAP system with automatic sensitivity insures critical care ventilation needs are optimized for spontaneous and mandatory breaths.

Benefits for the Patient
• Provides invasive or non-invasive patient support
• Low patient Work of Breathing with peak flow of up to 140 L/min to meet patient needs
• 100% or 65% to match patient oxygen requirements
• Switch from mask CPAP to invasive ventilation seamlessly and without interruption
• Low-profile, easy-seal mask reduces facial pressure

Benefits for the Healthcare Provider
• Calibrated CPAP and oxygen controls for easy operation
• MRI conditional up to 3 T – place right next to the scanner with remote alarm output for the control room
• Manometer to monitor patient pressure and effort
• Built-in CPAP / PEEP system with automatic sensitivity for changing patient needs; no need for external CPAP valves
• Night visible pressure gauge for patient monitoring
• Monitor CO2 with invasive/non-invasive ventilation
• Oxygen powered – no batteries to change
• Rugged and lightweight (6 lbs / 2.7 kg)
• Use the bacteria / viral filter to protect caregiver from patient exhalation

Benefits for Your Budget
• Two oxygen levels; conserve oxygen with 65% setting
• 45-minute CPAP run time on a D cylinder
• Demand flow CPAP system with minimal wasted oxygen
• Economical patient circuits save on operating costs
• No batteries or electronics decrease maintenance cost

pNeuton Model S P/N 20002
pNeuton Model S StartUp Kit P/N 20012

Description
• Pneumatically operated for use on pediatric and adult patients > 23 kg
• Demand flow system for spontaneous breathing to 140 L/min
• Pressures displayed on manometer
• Modes of Operation: CMV, IMV, CPAP, Pressure Limit
• Mandatory breath flow rate is fixed at 36 L/min
• MRI conditional – 3 T or less, maximum spacial gradient magnetic field of 720-gauss/cm or less, no gauss line restriction
• Weight: 6 pounds (2.7 kg)
• Dimensions: 4″ H x 8″ W x 6″ D (10 x 20 x 15 cm)
• Input gas requirement: 55 psi ± 15 psi (3.8 bar ± 1 bar)
• Classification according to MDD 93/42/EEC: IIb
• Meets International Standards for transport ventilators:
◦ ASTM: Ventilators Intended for Use in Critical Care (F 1100-90)
◦ ISO: Lung Ventilators for Medical Use, Part 3 (EN 794-3:1999)

Control Settings
Mandatory Breaths: ON or OFF
Respiratory Rate: 2 to 50 bpm
Tidal Volume: 360 to 1,500 ml
Peak Pressure: 10 to 75 cm H2O (mbar)
PEEP / CPAP: 0 to 20 cm H2O (mbar)
Oxygen: 100% or 65%
Audible and Visual Alarms
• All pneumatic alarm system (no batteries – requires minimum 30 psi / 2 bar gas supply pressure)
• Low gas source pressure
• If source gas drops below 40 psi (2 bar)
• Continues operation as long as oxygen is available
